Price
US $175.9-179
Model
Cantilever Series
MOQ
1 piece

Item specifics

Color
customizable
Rib
8pcs
Aluminum pole
77*53mm
Aluminum Rib
14*24mm
Aluminum rod
40x25mm
Fabric
260g polyester Yarn-dyed fabric, PU
Specification Level
Level B · Standard — Standard specification with upgraded frame and fabric.

Review

Description

Crank lift side pole umbrella over a terrace seating area
Outdoor Umbrella Series

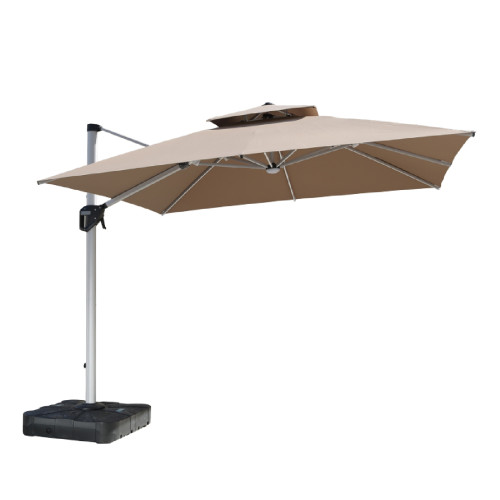

Crank Lift Side Pole Umbrella with Smooth Offset Design

A side-pole parasol raised by a hand crank, with the offset arm carrying the canopy clear of the centre. Smooth, repeatable operation that one member of staff can manage all day.

  • Hand-crank lift for smooth repeatable operation
  • Offset side-pole layout clears the centre
  • Eight-rib aluminium frame
  • 260g yarn-dyed polyester with PU coating
Key Features

Six reasons operators spec this umbrella

An umbrella only earns its place on a terrace if it holds up in wind and looks right in the daylight. These are the decisions behind this one.

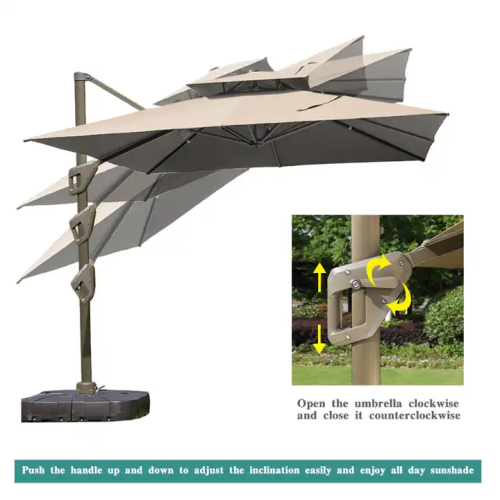

Smooth Hand-Crank Lift

The crank lift opens and closes the canopy with a smooth, repeatable action, so staff can raise and lower it all day without the frame binding or catching.

Offset Side-Pole Design

The arm carries the canopy clear of the centre of the space, which is what lets a full dining set sit in shade with no pole in the middle of it.

Eight-Rib Aluminium Frame

Eight ribs at 14 × 24mm on a 77 × 53mm pole give a stable frame that holds a square canopy in a side breeze.

260g PU-Coated Polyester

260g yarn-dyed polyester with a PU coating keeps its colour and handle through repeated opening and closing across a season.

Easy Daily Handling

The whole umbrella turns on the base with a light touch, so one person can move the shade to follow the guests around the terrace.

Commercial-Grade Build

Specified for hotel terraces, cafes, restaurants and residential patios where the umbrella is worked every day.

Side pole umbrella with offset arm over a commercial dining terrace
Build Detail

Operation Staff Actually Use

A crank lift matters more than it sounds. Rope and pulley systems need parts that wear and jam; a geared crank gives the same movement every time, which is what makes it practical for daily service.

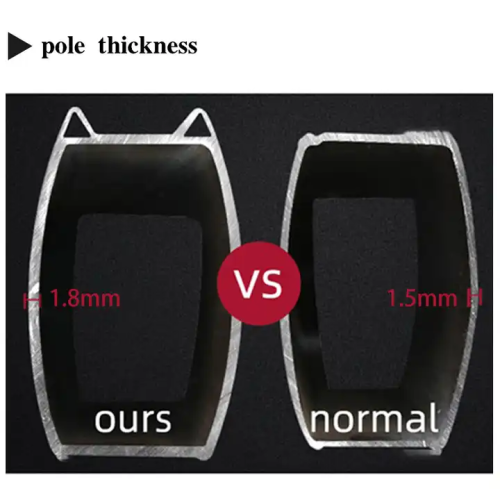

  • Aluminium pole 77 × 53mm
  • Aluminium ribs 14 × 24mm
  • Aluminium rod 40 × 25mm
  • 260g yarn-dyed polyester canopy with PU coating

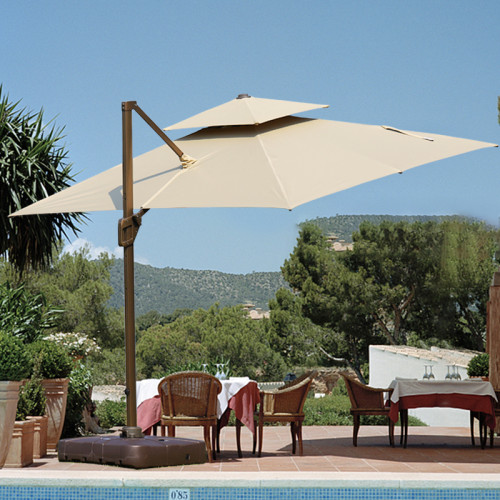

Side pole umbrella shading an outdoor terrace with seating
Outdoor Reality

Where It Gets Used

This format suits everyday terrace service: hotel and cafe outdoor seating, restaurant gardens, poolside loungers and private patios where shade has to be repositioned as the day goes on.

  • Hotel and cafe outdoor seating
  • Restaurant and courtyard dining
  • Poolside and garden loungers
  • Private residential patios and balconies
Specifications

Technical Specifications

One consistent specification set, with the matching hardware stated clearly.

Product TypeCrank Lift Side Pole Umbrella
OperationHand-crank lift with offset arm
Ribs8 pcs
Aluminium Pole77 × 53mm
Aluminium Rib14 × 24mm
Aluminium Rod40 × 25mm
Fabric260g polyester yarn-dyed with PU coating
ColourCustomizable
ApplicationHotel, restaurant, cafe, residential patio
Specification LevelLevel B · Standard
Supply Partner

A Reliable Partner for Outdoor Hospitality

Foris Hortus supplies bases, umbrellas and outdoor furniture to hotels, resorts and F&B groups as one coordinated order.

Matched Sets

Frame, canopy and base are specified as one set, so the fit and the finish line up on delivery.

Brand Customization

Canopy colour, fabric printing, frame finish and logo branding are customised to your property identity.

Project Shipping

Consolidated packing, documented loading plans and QC for cross-border hotel and resort orders.

After-Sales Support

Spare parts, care guidance and installation support for every commercial order.

Frequently Asked Questions

Common Questions About This Crank Lift Side Pole Umbrella

How does the crank lift work?

A geared crank raises and lowers the canopy smoothly and repeatably, without the wear parts that rope and pulley systems need.

Why is it built with an offset side pole?

The arm carries the canopy clear of the centre of the space, so a full dining set or lounge group sits in shade with no pole in the middle of it.

What is the frame made from?

Aluminium, with a 77 × 53mm pole, eight 14 × 24mm ribs and a 40 × 25mm rod.

What canopy fabric is used?

260g yarn-dyed polyester with a PU coating, chosen for how it handles repeated opening and closing through a season.

Can one person move it?

Yes. The umbrella turns on its base with a light touch, so a single member of staff can reposition the shade as the guests move around the terrace.

Can the canopy colour be customised?

Yes. Canopy colour, fabric printing and logo branding are all available on project orders.

Get a Quote for This Crank Lift Side Pole Umbrella

Tell us your quantity, umbrella size and destination port. We will reply with a tailored quotation within one business day.

Choose Your Canopy Fabric

Four benchmark canopy fabrics are available as standard. Each is selected for outdoor colour stability, weather resistance and commercial service life. Pick the level of performance your project needs.

FabricMaterialColour FastnessOutdoor Lifespan
Sunbrella100% Solution-dyed AcrylicGrade 7-810 years+
SauledaAcrylicGrade 7-85-8 years
FeilerAcrylicGrade 65-8 years
OlefinPolypropyleneGrade 4-53-5 years

Beyond these benchmark fabrics, we also offer two additional canopy options tailored to different budgets and projects - see below.

Sunbrella premium acrylic canopy fabric texture

Sunbrella

Premium acrylic imported from the USA - the industry benchmark.

  • 100% solution-dyed acrylic for superior colour fastness and long-lasting vibrancy.
  • UPF 50+ UV shielding with waterproof, stain and mildew resistance.
  • Soft, breathable weave that feels premium in any setting.
  • Top three colours: White 57003, Silver Grey QCLR073, Grey 54084.
Evercolor premium canopy fabric texture

Evercolor

Leading domestic premium fabric - a cost-effective alternative to imported acrylic.

  • Polyester staple-fibre blend with Teflon coating.
  • Weight 250 / 320 g per square metre.
  • 500 Pa hydrostatic water resistance.
  • 5-year outdoor colour fastness.
Proprietary blended canopy fabric texture

Proprietary Blended Fabric

In-house developed blend engineered for durability and weather resistance.

  • High-performance polyester with functional fibres.
  • Weight 300 g per square metre.
  • 500 Pa hydrostatic head with water-repellent coating for light rain.
  • 5-year outdoor lifespan; available non-coated or coated.

Pole Finish Options

The aluminium frame is offered in three finishes so the umbrella matches your architecture and brand.

Powder coating colour swatch fan for aluminium frames

Powder-Coated Finish

A durable solid-colour coating in a wide RAL range for a clean, modern look and strong corrosion resistance.

Heat-transfer wood-grain colour swatch fan for aluminium frames

Heat-Transfer Wood-Grain

A realistic timber texture over aluminium - the warm look of wood with none of the maintenance or rot.

Anodized aluminium colour swatch fan

Anodized / Oxidation

A natural metallic surface that is highly corrosion-resistant, low-maintenance and quietly premium.

Frequently Asked Questions

The questions buyers ask most often about this model. Tap a question to read the answer.

What are the main specifications?

This model is specified as Brand Foris Hortus; Ribs 8pcs; Fabric 260g polyester Yarn-dyed fabric, PU. All dimensions and finishes can be adjusted for the project, and the full size range is available on request.

Which sizes and shapes are available?

Round, square and rectangular canopies from 2.5 m up to 4 m and beyond are produced, with 8 ribs as the standard configuration. Vented double-tier and three-tier versions are available where wind resistance and heat dissipation matter.

How does it open and close?

Depending on the model: hand-crank lift, push-pull telescopic pole, pulley rope or gas spring assistance. Larger commercial canopies typically use gas spring assistance so the canopy can be raised and lowered by one person.

Which base fits?

Most commercial umbrellas take a resin, concrete or water-filled base, and larger sizes need a heavier base or in-ground anchoring. Match the base to the canopy size and to whether the surface is a patio, deck or lawn.

How does it perform in wind?

A vented double-tier canopy reduces wind load noticeably compared with a single tier, and a three-tier pagoda construction adds further stability. As with any parasol, the correct behaviour in strong wind is to close it - no umbrella is designed to stand in a storm.

Can I choose the canopy fabric?

Yes. This model is specified with 260g polyester Yarn-dyed fabric, PU; Sunbrella solution-dyed acrylic is the premium choice for flagship projects, with Evercolor, our proprietary blend and Olefin as cost-effective alternatives. All options are listed in the fabric section below.

Can my logo be added?

customizable. Logos can be applied to the canopy corners, valance, top plate or handle housing, and frame colours are customizable across the powder-coated range.

How is it packed and what is the warranty?

Mail-order packaging designed to pass an 80 cm drop test, with bases shipped separately to keep the parcel manageable. Outdoor furniture carries a 12-month warranty from the date of loading.

At a glance

CategorySide Upright Umbrella
Shade sizes
Frame warranty5 years
Canopy fabric260g polyester Yarn-dyed fabric, PU

Features

UV80+ canopy fabric

Solution-dyed polyester with PA coating blocks over 99% of UV rays and holds its colour in high-exposure coastal terraces.

Marine-grade aluminium frame

Powder-coated aluminium masts and ribs resist corrosion in salt air and poolside humidity, with no seasonal retreatment.

Wind-tested reinforced ribs

Reinforced rib joints, self-lubricating connectors and adjustable tilt keep the canopy stable and safe in strong winds.

OEM sizes, colours and branding

Custom mast diameters, fabric colours, solar LED lighting, fringe and printed logos for branded terrace projects.

Options & customisation

  • Full shade card of canopy fabric colours
  • Solar LED lighting and 360° rotation
  • Fringe, valance and contrasting binding
  • Weighted bases and in-ground anchors
  • Logo printing and OEM canopy production
5-year frame warrantySpare parts and canopies stocked for repeat orders
OEM / ODM productionCustom diameters, colours and printed branding
Marine-grade materialsTested for high UV, humidity and coastal wind
FOB NingboL/C and T/T terms, quotation within one working day

Need Samples or Detailed Specifications?

Request free fabric samples and the full specification sheet for this model, or browse our complete product catalogs. Send your quantity and destination port for a quotation within one working day.

Configuration Level

Four Specification Tiers, One Build Standard

Every Foris Hortus product sits in one of four configuration tiers. The tier is set by frame section, fabric specification and hardware, and it stays the same whether the order is one piece or a full scheme.

Level AEssential

Volume orders and straightforward commercial layouts.

Standard aluminium frame, standard canopy fabric, fixed position.

Level BStandardYour specification

The usual specification for hotel and restaurant terraces.

Upgraded frame section and fabric weight, added adjustment or opening system.

Level CPremium

Flagship hospitality projects where the terrace is photographed.

Marine-grade hardware, higher-specification fabric, LED or rotation as standard.

Level DProject

Multi-scheme developments specified to a full site brief.

Bespoke dimensions, matched base and furniture, project documentation and QC.

Prices are not published. Send your quantity, size and destination port and we will reply with a quotation within one business day.
